Product Features

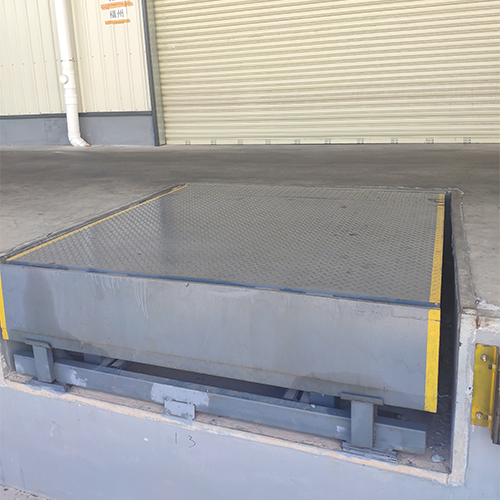

- Installed in a recessed dock pit, remaining flush with the loading dock when not in use to save space and keep traffic areas unobstructed.
- One-touch push-button operation with a fully hydraulic drive system for simple, efficient, and reliable operation.
- The hinged lip automatically adjusts upward or downward to accommodate trucks and containers of different bed heights, ensuring a smooth and secure transition.
- Equipped with side safety toe guards (toe protection plates) on both sides to help prevent foot injuries while the platform is lowering.
- Optional steel loading dock platform available for facilities without an existing loading dock.
Product Specification
|
Specification |
Details |
|
Load Capacity |
6 t / 8 t / 10 t |
|
Platform Size |
2,000 × 2,500 mm |
|
Height Adjustment Range |
-300 mm to +400 mm |
|
Platform Material |

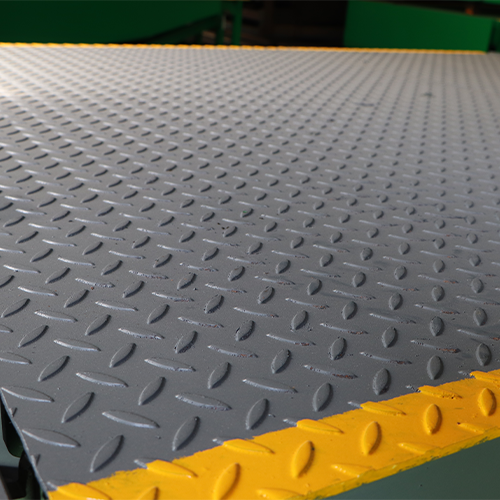

High-strength checkered steel plate |
|
Frame Structure |
Heavy-duty I-beam steel frame |
|
Surface Finish |
Welded steel construction with durable coating |
|
Customization |
Available upon request |
Custom Services
Weilin Qinli dock levelers are fully customizable to meet the specific requirements of your loading operations. Key specifications—including load capacity, platform dimensions, deck length, and height adjustment range—can be tailored to suit your facility layout and operational needs.
Designed for efficient and safe loading and unloading, our customized dock levelers are ideal for logistics centers, warehouse loading docks, freight terminals, ports, cold storage facilities, and distribution centers, delivering reliable performance across a wide range of material handling applications.
Product Applications
Stationary Dock Levelers are designed for fixed loading docks, providing a safe and efficient bridge between warehouse floors and trucks. They are widely used in:
- Warehouses
- Distribution Centers
- Logistics Parks
- Manufacturing Plants
- Cold Storage Facilities
- Ports & Terminals
- Freight Stations
- E-commerce Fulfillment Centers
- Food & Beverage Warehouses
- Retail Distribution Centers
Typical Applications：
- Truck loading and unloading
- Container loading operations
- Warehouse logistics
- High-frequency cargo handling
- Dock height adjustment
FAQ
Q1: What is a stationary dock leveler?
A1: A stationary dock leveler is permanently installed in a loading dock pit, providing a smooth and secure bridge between the warehouse floor and truck bed for efficient loading and unloading.
Q2: What load capacities are available?
A2: Standard capacities include 6T, 8T, and 10T, with higher capacities available through custom manufacturing.
Q3: Can the dock leveler fit different truck heights?
A3: Yes. The hydraulic lip automatically adjusts to accommodate different truck and container heights, ensuring smooth forklift operation.
Q4: What after‑sales service do you provide?
A4: We provide comprehensive after‑sales support, including technical consultation, installation guidance, maintenance assistance, spare parts supply, and online troubleshooting. All equipment is backed by a 1‑year machine warranty, and our technical team is ready to provide prompt support whenever needed.
